Unlock Smart Security: What is a PIR Motion Sensor & How It Works

In the evolving landscape of smart home technology, accurate and reliable motion detection is paramount for everything from security to energy efficiency. At the heart of many of these advanced systems lies a seemingly simple yet incredibly powerful device: the Passive Infrared (PIR) motion sensor. Understanding PIR-sensor-technology is key to appreciating how your smart home intelligently responds to presence.

This article will delve into what a PIR motion sensor is, how it functions at a technical level, and its diverse applications in the modern smart home ecosystem. Whether you’re looking to enhance your home’s security, automate lighting, or simply optimize energy use, PIR sensors play a crucial role.

What is a PIR Motion Sensor?

A PIR motion sensor, short for Passive Infrared motion sensor, is an electronic device that detects the presence and movement of people or animals by sensing the infrared energy they emit. Unlike active sensors that transmit and receive signals (like radar or ultrasonic sensors), PIR sensors are „passive” because they only receive infrared radiation.

Every living being with a body temperature above absolute zero emits infrared radiation. PIR sensors are specifically designed to detect changes in this emitted radiation. When a warm body moves into or out of the sensor’s field of view, it causes a fluctuation in the detected infrared energy, triggering the sensor.

How Does a PIR Sensor Work?

The operational principle of a PIR sensor is rooted in its ability to detect changes in heat signatures. Here’s a breakdown of the core mechanics:

• Infrared Detection: At its core, a PIR sensor contains a pyroelectric sensor, a material that generates an electric charge when exposed to heat (infrared radiation).
• Dual Elements: Most PIR sensors use two pyroelectric elements. These elements are wired in opposition, meaning that when both elements detect the same amount of infrared radiation, they cancel each other out, resulting in no output. This design helps the sensor ignore gradual changes in ambient temperature across its entire field of view.
• Movement Detection: When a warm body (like a person) moves across the sensor’s field of view, it first heats one element, then the other. This differential heating creates a positive then negative voltage pulse (or vice versa) as the person moves. This rapid change in voltage is what the sensor interprets as motion.
• Fresnel Lens: A crucial component of a PIR sensor is the Fresnel lens, typically a clear, segmented plastic cover over the sensor. This lens is not a standard optical lens but rather a series of faceted lenses. Its primary purpose is twofold:
  • Focus Infrared: It focuses the infrared radiation from different angles onto the pyroelectric sensor elements.
  • Create Detection Zones: It divides the sensor’s field of view into multiple ‘hot’ (IR-sensitive) and ‘cold’ (IR-blocked) zones. As a warm body moves from a ‘hot’ zone to a ‘cold’ zone, the alternating detection creates the voltage pulses needed to trigger the sensor.

This clever combination of pyroelectric elements and the Fresnel lens allows for highly effective motion-detection, making PIR sensors a cornerstone of modern occupancy-sensing and security systems.

Applications in Smart Homes and IoT

PIR motion sensors are ubiquitous in the smart home environment due to their reliability, low power consumption, and effectiveness. Their ability to detect presence makes them invaluable for a wide array of home-automation and smart-home-security functions.

• Smart Home Security Systems: This is arguably the most common application. PIR sensors are integral components of The Ultimate Smart Home Security Guide, triggering alarms when unexpected motion is detected. They often work in conjunction with security cameras to provide visual verification of an event. For advanced setups, understanding Understanding End-to-End Encryption in Security Cameras is vital for data privacy.
• Automated Lighting: PIR sensors can automatically turn lights on when someone enters a room and off when the room is empty, saving energy. This is particularly useful in hallways, bathrooms, or closets. They form the backbone of many smart lighting solutions.
• Climate Control: Integrated into smart thermostats, PIR sensors can detect occupancy, allowing the HVAC system to adjust temperature settings based on whether a room is occupied or not, optimizing comfort and energy use.
• Smart Doorbells and Access Control: Many modern video doorbells, like those compared in Ring Video Doorbell vs. Nest Doorbell: Which is Best for You?, use PIR sensors to detect visitors approaching your door, even before they press the button. They can also work with smart locks to trigger actions when someone approaches.
• Custom Routines and Automation: Beyond specific product functions, PIR sensors can serve as triggers for complex smart home routines. For instance, detecting motion at night could automatically dim lights, lock doors, or send notifications. You can even learn How to Create Automated Security Routines with Alexa using these sensors.
• Energy Monitoring: By understanding occupancy patterns, smart home systems can better manage energy consumption, turning off devices or lights when areas are vacant.

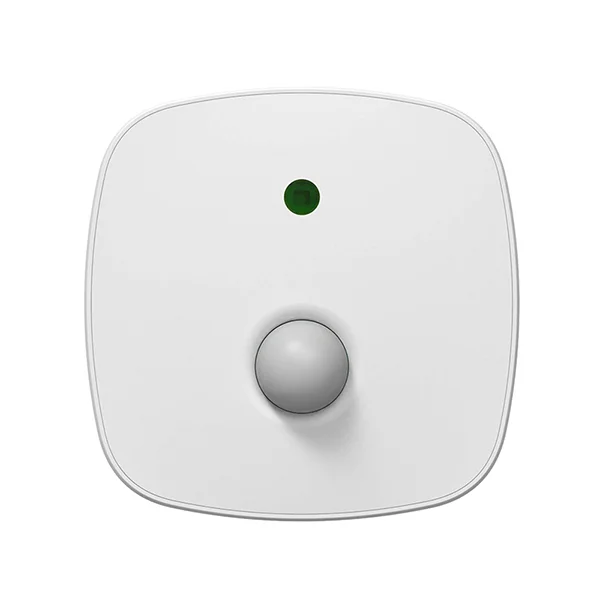

Practical Product Example: Philips Hue Motion Sensor

A prime example of a consumer-friendly PIR sensor integrated into a smart home ecosystem is the Philips Hue Motion Sensor. This compact, battery-powered device seamlessly integrates with the Philips Hue smart lighting system (and other Matter/HomeKit ecosystems via the Hue Bridge). It uses passive infrared technology to detect movement within its adjustable range, which can then trigger your Hue lights to turn on, off, or change brightness/color based on customized routines.

The Hue Motion Sensor also includes an integrated daylight sensor, allowing it to keep lights off during bright periods, further enhancing energy efficiency. Its simple installation and reliable performance make it a popular choice for automating lighting in hallways, bathrooms, and other high-traffic areas, demonstrating the practical utility of PIR motion detection in everyday smart living.

Recommended Product: Philips Hue Motion Sensor

See the latest price and user reviews on Amazon.

Check on Amazon

Advantages of PIR Sensors

PIR sensors offer several compelling advantages that contribute to their widespread adoption:

• Energy Efficiency: As „passive” devices, they don’t emit any energy, making them very low power consumers. This allows many PIR sensors to be battery-operated for extended periods, reducing the need for constant recharging or wiring.
• Cost-Effectiveness: PIR technology is mature and relatively inexpensive to manufacture, making PIR sensors a cost-effective solution for motion detection compared to more complex active sensing technologies.
• Reliability: They are generally reliable for detecting human and large animal movement under varying light conditions, as they rely on heat signatures rather than visual input.
• Simplicity: Their operation is straightforward, making them easy to integrate into various IoT-sensors and smart home devices.

Limitations and Considerations

While highly effective, PIR sensors do have some limitations:

• False Positives: Sudden changes in ambient temperature (e.g., direct sunlight, rapid heating from a vent), strong drafts, or even pets can sometimes trigger false alarms. Modern sensors often include pet immunity features to mitigate this.
• Temperature Dependence: Their effectiveness can be reduced in environments where the ambient temperature is very close to body temperature, as the thermal contrast is minimized.
• Line of Sight: PIR sensors require a clear line of sight to detect motion. Obstructions like furniture or walls will block their detection.
• Direction of Movement: They are most sensitive to motion that crosses their field of view. Movement directly towards or away from the sensor may be less reliably detected.

PIR Sensors vs. Other Motion Detection Technologies

While PIR sensors excel in many areas, other motion detection technologies exist, each with its own strengths:

• Ultrasonic Sensors: These active sensors emit high-frequency sound waves and measure the time it takes for the waves to bounce back. They can detect subtle movements and are less affected by temperature, but can be prone to false positives from airflow or smaller animals, and are generally more expensive.
• Microwave Sensors: Similar to radar, these active sensors emit microwave radiation and detect changes in the reflected frequency (Doppler effect). They can detect motion through walls and are less affected by temperature, but are more expensive, consume more power, and can suffer from interference.
• Camera-based Motion Detection: Modern smart security cameras use algorithms to detect pixel changes in video streams. This offers detailed information (like object recognition), but can be computationally intensive, reliant on good lighting, and more susceptible to environmental factors like shadows or light changes.

Often, smart home devices combine PIR with other technologies (like video analytics or radar) to create more robust and accurate motion detection, minimizing false alarms and enhancing overall system intelligence. This multi-sensor approach is increasingly common in sophisticated smart home security systems.

Conclusion

PIR motion sensors are unsung heroes of the modern smart home. Their ability to reliably detect the presence and movement of people based on passive infrared radiation makes them indispensable for a wide range of applications, from bolstering smart home security to automating lighting and climate control. While they have their limitations, their energy efficiency, cost-effectiveness, and ease of integration ensure their continued prominence in the IoT world.

As smart home technology continues to advance, expect PIR sensors to become even more sophisticated, perhaps integrating further with AI and machine learning to distinguish between humans and pets, or to learn occupancy patterns for truly intuitive home automation. Understanding how these clever devices work empowers you to build a smarter, more responsive, and more secure living environment.
